Solving a PDE using separation of variables
Contents
Problem
A rectangular plate 0<=x<=1 and 0<=y<=2 has temperature 0 on the bottom, left, and right edge. At the top edge the temperature is 1. Find the temperature u(x,y) in the plate!
In the rectangle 0<=x<=1 and 0<=y<=2 the function u(x,y) satisfies the PDE
u_{xx} + u_{yy}=0.
The boundary conditions are
- u=0 for the left side with x=0
- u=0 for the right side with x=1
- u=0 for the bottom side with y=0
- u=1 for the top side with y=2
Find the solution u(x,y)
Step 1: find solutions u(x,y)=v(x)w(y) with u=0 on the bottom, left, and right hand side.
Plugging this into the differential equation u_{xx}+u_{yy) = 0 and dividing by v(x)*w(y) gives
v''(x)/v(x) + w''(y)/w(y) = 0
Hence both terms have to be constant: v''(x)/v(x) = -lambda, w''(y)/w(y) = lambda
The first problem v''(x)/v(x) = -lambda has the solutions v(x) = A*cos(lambda^.5*x) + B*sin(lambda^.5*x) The condition v(0)=0 gives A = 0. The condition v(1)=0 gives sin(lambda^.5*x)=0 and hence lambda^.5 = k*pi. Hence we obtain the following nonzero solutions:
v(x) = sin(k*pi*x), k=1,2,... with lambda_k = k^2*pi^2, k=1,2,3,...
The second problem has the solutions
w(y) = A*exp(lambda^.5*y) + B*exp(-lambda^.5*y) = a*cosh(lambda^.5*y) + b*sinh(lambda^.5*y)
The condition w(0) = 0 gives a = 0. Hence we obtain
w(y) = b*sinh(k*pi*y)
yielding
u(x,y) = sum_{k=1,2,3...} u_k sin(k*pi*x) sinh(k*pi*y)
with some coefficients u_k which we still have to find.
Step 2: Find coefficients u_k using boundary condition on top side
Plugging in y=2 gives
u(x,2) = sum_{k=1,2,3...} u_k sinh(k*pi*2) sin(k*pi*x)
This is a sine series sum_{k=1,2,3,...} b_k sin(k*pi*x) We want u(x,2) = g(x) where g(x)=1 are the given boundary values on the top side.
Find the sine series for g(x)=1: b_k = 2*integral_{x=0...1} g(x)sin(k*pi*x) dx
Result: We obtain the sine series g(x) = 1 = sum_{k=1,3,5,...} 4/(k*pi) sin(k*pi*x)
Hence u_k = 4/(k*pi*sinh(k*pi*2)) for k=1,3,5,..., zero otherwise.
syms x k Pi = sym('pi'); assume(k/2,'integer'); % assume that k is even b_even = simplify( 2*int(1*sin(k*Pi*x),x,0,1) ) assume((k+1)/2,'integer'); % assume that k is odd b_odd = simplify( 2*int(1*sin(k*Pi*x),x,0,1) )
b_even = 0 b_odd = 4/(pi*k)
Resulting solution
We obtain
u(x,y) = sum_{k=1,3,5,...} 4/(k*pi*sinh(k*pi*2)) sin(k*pi*x) sinh(k*pi*y)

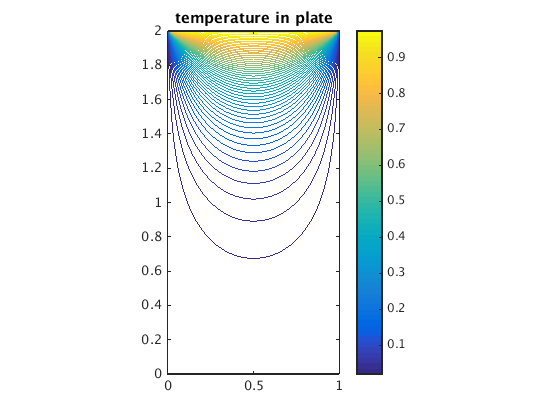

[X,Y] = meshgrid(0:.02:1,0:.02:2); % grid for x and y values U = zeros(size(X)); for k=1:2:100 U = U + 4/(k*pi*sinh(k*pi*2))*sin(k*pi*X).*sinh(k*pi*Y); end figure(1); surf(X,Y,U); axis equal; title('temperature in plate') figure(2); contour(X,Y,U,50); axis equal; colorbar; title('temperature in plate')
