NEWS:

• The Final Exam will be on Tuesday, May 16, 1:30-3:30pm in MTH0409.
  You can bring a cheat sheet: letter size, two-sided, must be handwritten.
  The final exam covers the topics of the two exams (see below), and Numerical Integration.
• I will post the solution of Assignment 7 on Tue, May 9 at 10pm. No homeworks will be accepted after that time.
• Assignment 7 was handed out on May 3. It is due on Monday, May 8.
  Solution: Problems 1,2 , Problem 3
  Problem 2: It should say: We want to approximate integral I = ...
  Problem 3: The exact value for the integral is I=0.460730475133672 (computed with vpaintegral)
  Problem 3(a): In order to find the number of function evaluations write your function as an m-file f.m as follows: E.g., for f(x)=x·sin(x) we would use

  function y = f(x)
  global NEV                % keep track of number of function evaluations NEV
  NEV = NEV + length(x);
  y =  x.*sin(x);           % IMPORTANT: use .* ./ .^ instead of * / ^


  and then use e.g.

  global NEV                % declare NEV as global variable
  NEV=0; Q = integral(@f,a,b,'RelTol',1e-3,'AbsTol',1e-3)
  NEV                       % number of function evaluations used for "integral"


  Problem 3(b),(c): Look at the example for Gauss-Legendre quadrature and Gauss-Jacobi quadrature below. Choose alpha, beta appropriately for 3(c).
• Exam 2 was on Monday, May 1.
  Solution
  Practice problems
  It will cover
  • interpolation with polynomials: divided difference algorithm, error formula
    (piecewise polynomials and splines will NOT be on the exam)
  • linear least squares problem: (i) normal equations, (ii) orthogonalization
    You do NOT have to perform Gram-Schmidt to find decomposition A=PS or Q=QR. But if you are given A=PS or A=QR you have to know how to use it to solve the least squares problem.
  • one nonlinear equation: bisection method, secant method, Newton method
  • nonlinear system: Newton method
    Contraction mapping theorem
  • you need to know how to use the Matlab commands qr, \, fzero, fsolve.
  Nonlinear least squares and numerical integration will NOT be on the exam.
  Solution of practice problems
• I posted the solution of Assignment 6 on April 27. No late homework submissions will be accepted on April 27 or later.
• Assignment 6 was DUE ON APRIL 25, 9pm at my office MATH4409 (write submission day/time on homework)
  Solution: Problem 1, Problem 2, Problem 3, Problem 4, Problem 5
• Read Numerical Integration (updated!),   Adaptive numerical integration, how to use the Matlab command integral(see below)
• Nonlinear least squares problem: Example for Gauss-Newton method and lsqnonlin
• Assignment 6 was handed out on April 14, it is due on April 24.
• Assignment 5 was handed out on March 31, due on April 10.
  Solution: Problem 1, Problem 2, Problem 3, Problem 4
• How to import CO₂ data from NOAA into Matlab
• Read the notes on the linear least squares problem and the example for least squares problem
• Read the material about piecewise linear interpolation, piecewise cubic Hermite interpolation, cubic spline interpolation.
  Look at the example for piecewise cubic interpolation methods
• Read the material about interpolation with multiple nodes
• Example from class: Polynomial interpolation with equidistant and Chebyshev nodes
• Exam 1 was on Wed, March 15.   solution
  The exam covers the material of Assignments 1 through 4:
  • Taylor approximation, error propagation, roundoff error, condition number, numerically stable/unstable algorithms
  • Gaussian elimination without/with pivoting, Cholesky decomposition, norms, condition of a matrix, residuals

  • Matlab commands lu, \, chol
  The following topics will NOT be on the exam: invnormest, sparse matrix type in Matlab, interpolation.
  practice problems
  solution
• Try out polynomial interpolation!
• Assignment 4 was posted on Feb. 27, it is due on March 6.
  Solution: Problems 1,2, Problems 3, Problems 4, Problems 5
• Assignment 3, due Feb. 24 (posted Feb. 16)
  Solution: problem 1, problem 2, problem 3
• Assignment 2 was handed out on Feb. 3, it was due on Feb. 13.
  Solution
• Assignment 1 was handed out on Jan. 27, it was due on Feb. 6.
• Please read the information below about Matlab.

Course information

Information about exams, homeworks, grades

Additional Course Material (Required Reading)

• Introduction: Errors, Taylor Theorem
• Error propagation, forward error analysis, numerical stability
• Examples for unavoidable error, actual error   (m-file)
• How to compute 1-cos(x)   (m-file)
• IEEE 754 machine numbers and machine arithmetic
• Solving Linear Systems
• How to solve a linear system in Matlab:
  • [L,U,p] = lu(A,'vector'); % Gaussian elimination choosing the pivot candidate with largest absolute value
    y = L\b(p)                % forward substitution with permuted vector b
    x = U\y                   % back substitution
  • Matlab shortcut
    x = A\b
    This performs the three steps from above, but you can't save L, U, p. Don't use this if you solve several linear systems with the same matrix.
• Example for Gaussian Elimination with Pivoting
• Errors for Linear Systems
• Estimating the condition number if L,U are known: Download invnormest.m.
  For the 1-norm condition number use

  c1 = norm(A,1)*invnormest(L,U)

  For the ∞-norm condition number use

  ci = norm(A,Inf)*invnormest(U',L')

  For the Cholesky decomposition use invnormest(C',C). The m-file invnormest_simple.m explains the basic algorithm for estimating ||A^-1||
• How to solve sparse linear systems in Matlab:
  A sparse matrix is a matrix where most elements are zero. In this case it is much more efficient to use the special sparse data structures in Matlab. All operations like *, \, lu have special efficient algorithms for matrices in sparse format. In particular the backslash command x=A\b uses clever row and column permutations to minimize "fill-in".
  • initializing a sparse matrix: A sparse matrix can be described by giving a list of the nonzero elements, as vectors iv (contains i-values), jv (contains j-values), av (contains matrix entries). Then a sparse matrix is initialized by

    A = sparse(iv,jv,av);

    Example: The full matrix given by A = [0 7 0; 0 0 8; 9 0 0] can be defined as a sparse matrix by

    A = sparse([1 2 3],[2 3 1],[7 8 9])

  • Solving a linear system with a sparse matrix:
    • [L,U,p,q] = lu(A,'vector'); % Gaussian elimination with row and column permutations
                                   % (chosen to minimize "fill-in"): L*U gives the permuted matrix A(p,q)
      y = L\b(p)                  % forward substitution with permuted vector b
      x = U\y; x(q) = x           % back substitution, then undo permutation given by q
    • or just use
      x = A\b
      which does the above steps automatically (but without the option to save the result of the LU-decomposition).
• Cholesky decomposition in Matlab: (only works if A is symmetric positive definite)
  • C = chol(A), then C'*C gives A
  • for sparse matrix: find row/column permutation vector p to minimize "fill-in":
    [C,k,p] = chol(A,'vector'), then C'*C gives the permuted matrix A(p,p)
    (ignore the return value k which is zero for a positive definite matrix)
• Gaussian elimination WITHOUT/WITH pivoting, Cholesky decomposition
• Interpolation (updated March 13)
• Try out polynomial interpolation!
• Divided difference algorithm for distinct nodes x₁,...,x_n and given function values y₁,...,y_n:
  divdiff computes the divided differences d₁=f[x₁,...,x_n], d₂=f[x₂,...,x_n],...,d_n=f[x_n]
  Matlab code: divdiff.m
  evnewt evaluates the interpolating polynomial at the point t
  Matlab code: evnewt.m
• Example: Polynomial interpolation with equidistant and Chebyshev nodes     (m-file)
• Equidistant nodes on the interval [a,b] are given by

  h = (b-a)/(n-1);    x_j = a + (j-1)h for j = 1,...,n

  Matlab: x = linspace(a,b,n)
  Chebyshev nodes on the interval [a,b] are given by

  x_j = (a+b)/2 + cos(π(j-1/2)/n)·(b-a)/2 for j = 1,...,n.

  The node polynomial has the bound

  |(x-x₁)...(x-x_n)| ≤ 2 ((b-a)/4)ⁿ for x in [a,b]

• Piecewise polynomial interpolation This covers piecewise linear interpolation, piecewise cubic Hermite interpolation, complete cubic spline, not-a-knot cubic spline
  You can ignore the formulas for the piecewise cubic Hermite interpolation and for the cubic spline interpolation. You just need to know how to compute this in Matlab, see right below.
• Piecewise cubic interpolation in Matlab: The column vector x contains the x-coordinates of the nodes, the column vector y contains the function values at the nodes, the vector yp contains the derivatives at the nodes. The vector xi contains the points where we want to evaluate the interpolating function, the vector yi contains the corresponding values of the interpolating function.
  • Cubic Hermite interpolation: Download hermite.m . Then use yi = hermite(x,y,yp,xi)
  • Complete cubic spline: points are given by column vectors x, y. Slopes at left and right endpoint are sl and sr.
    yi = spline(x,[sl;y;sr],xi)
  • Not-a-knot cubic spline: yi = spline(x,y,xi)
  Example for piecewise cubic interpolation
• historical origin of "splines": "used principally by ship architects ... splines are thin, tapering pieces of lancewood or red pine" in "Treatise on Mathematical Drawing instruments" from 1868
• "Curve fitting" for data with measurement errors: Linear least squares method
• Nonlinear equations

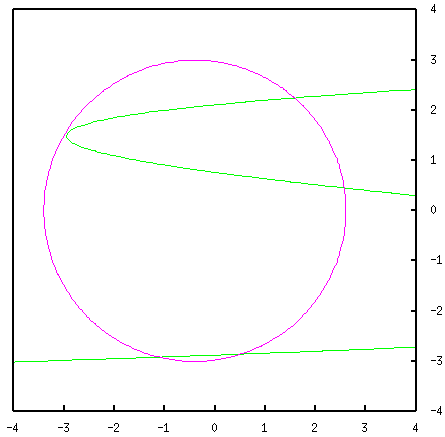

• Nonlinear system: Example for Newton method and fsolve     (m-file)
• Solving a nonlinear equation with Matlab:
  We want to find a zero of the function f in the interval [a,b] where f(a) and f(b) have different signs:

  xs = fzero(@f,[a,b])

  Here the function f is given in the m-file f.m. If the function f is defined by an @-expression use xs=fzero(f,[a,b]).
  Example with @-function:  f=@(x)sin(x); xs=fzero(f,[3,4])
• Solving a nonlinear system in Matlab using fsolve: (without using the Jacobian)
  Write an m-file f.m containing the function f:

  function y = f(x)
  y = ...

  Then use x = fsolve(@f,x0) where x0 is the initial guess.
  Example: See the bottom of the first page of Nonlinear equations
  You can specify additional options using optimset, e.g. the tolerance for function value and the tolerance for x:

  opt = optimset('TolFun',1e-5,'TolX',1e-5);
  x = fsolve(@f,x0,opt);

  There are many other options (e.g., display each iteration, or use the Jacobian) , type doc fsolve for more information.
• Fixed Point Iteration and Contraction Mapping Theorem (proof of Newton-Kantorovich theorem)
• Nonlinear least squares problem:
  We have a function y=f(x) where x is a vector of length n and y is a vector of length N, with N≥n. We want to find x such that ||f(x)||₂ is minimal.
  Simple example with n=2, N=3: Let f(x) = [x₁-.4, x₂-.8, x₁²+x₂²-1]^T, use initial guess [0,0]^T
  • Gauss-Newton method: gaussnewton.m
  • How to use lsqnonlin (without Jacobian):
    f = @(x) [x(1)-.4; x(2)-.8 ; x(1)^2+x(2)^2-1];
    [x,resnorm2] = lsqnonlin(f,[0;0]) % resnorm2 is ||f(x)||²
    There are many other options (e.g., display each iteration, or use the Jacobian) , type doc lsqnonlin for more information.
• Nonlinear least squares problem: Example for Gauss-Newton method and lsqnonlin
• Numerical Integration (updated 05/03)

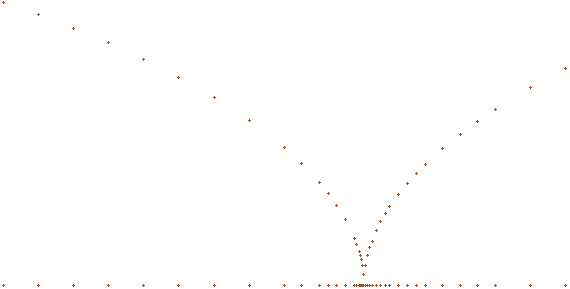

• Adaptive numerical integration
• Numerical integration with Matlab:   Q = integral(f,a,b)
  Example: Find the integral of exp(-x^2) from 0 to 1:
    f = @(x) exp(-x.^2);   Q = integral(f,0,1)
  Note:
  • Write your function f(x) so that it works for a vector x and returns a vector f(x) of function values f(x₁),...,f(x_n): use .* ./ .^ instead of * / ^ in the definition of f.
    Example: for I = ∫₀¹e^{-x^2}dx use
    f = @(x) exp(-x.^2); % works for vectors x
    Q = integral(f,0,1)
  • If your function f(x) only works for scalars x you MUST use the option 'ArrayValued','True':
      f = @(x) exp(-x^2); % works only for scalars
      Q = integral(f,0,1,'ArrayValued',true)
  • You can specify tolerances for the relative and absolute error:
      Q = integral(f,a,b,'RelTol',1e-13,'AbsTol',1e-13)
• Gauss quadrature: Read the Notes about Gauss quadrature
  • Gauss-Legendre quadrature
    ∫₀¹f(x)dx is approximated by w(1)*f(x(1))+...+w(n)*f(x(n))
    ∫_a^bf(x)dx is approximated by r*(w(1)*f(t(1))+...+w(n)*f(t(n))) where r=(b-a)/2; t=(a+b)/2+r*x
    Method from class. But GaussLegendre.m is more accurate and efficient.
  • Gauss-Jacobi quadrature with α,β>-1
    ∫₀¹(x+1)^α(1-x)^βf(x)dx is approximated by w(1)*f(x(1))+...+w(n)*f(x(n))
    ∫_a^b(x-a)^α(b-x)^βf(x)dx is approximated by r^(1+alpha+beta)*(w(1)*f(t(1))+...+w(n)*f(t(n))) where r=(b-a)/2; t=(a+b)/2+r*x
  • Gauss-Laguerre quadrature with α>-1, b>0
    ∫₀^∞x^αe^-xf(x)dx is approximated by w(1)*f(x(1))+...+w(n)*f(x(n))
    ∫₀^∞x^αe^-bxf(x)dx is approximated by b^(-1-alpha)*(w(1)*f(t(1))+...+w(n)*f(t(n))) where t=x/b
  Examples for Gauss-Legendre and Gauss-Jacobi quadrature

Matlab programming

We will use Matlab to see how various algorithms work.

• Matlab can be downloaded for free from TERPware.
• Gentle introduction to Matlab (also explains how to use the Matlab interface, how to publish)
• We will NOT use SYMBOLIC Matlab commands (like sym, syms, ezplot) in this class. (We will, however, use vpa in the first assignment.)
• Matlab Primer gives a concise summary of the most important Matlab commands (but it was written for an older version of Matlab)

How to hand in Matlab results for homeworks:

• You have to write an m-file for each problem. (Typing commands at the >> prompt and printing this out is not allowed)
• You have to hand in all m-files together with the generated output and graphics.
  The best way is to use the publish command in Matlab (if you call additional m-files you have to print them out separately).
• Only print out values which are asked for in the problem. (Make sure you have a semicolon at the end of lines.)
  Label all numerical output and graphics: How to label output and graphics in Matlab
• Hand in additional pages (this can be handwritten) which show the "paper and pencil work", and answer all the questions asked in the problem.

How to use the publish command in Matlab:

• Example 1: Using publish with the m-file sample.m generates sample.html (which you can print out and hand in).
• Example 2: this m-file shows how to format each problem. This is the generated output.
• More information about publishing markup
