In this example we use CentPack's one-dimensional second order fully-discrete formulation, centpack_1d_FD2, to evolve the solution of the equations of Ideal Magnetohydrodynamics
where
stands for the total pressure, and the the pressure, p, is related to the conserved quantities through the equation of state
with  . The solution is calculated over the domain  , from  , to  . The initial conditions are those of the Brio-Wu shock tube
and Dirichlet boundary conditions (i.e., the conserved quantities take on the values specified by the initial conditions at either boundary). Solution computed with 400 cells and cfl number 0.475.

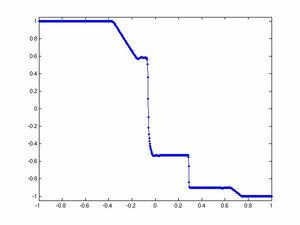

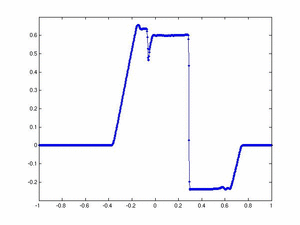

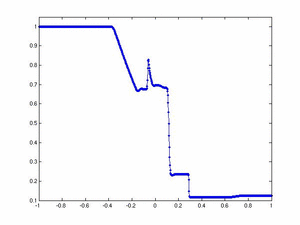

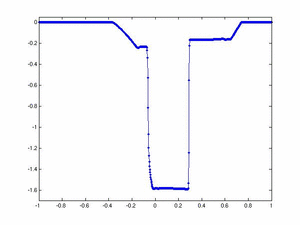

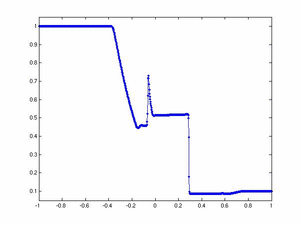

The images below display, from top to bottom and left to right, the profiles of density, x-velocity, y-velocity, y-magnetic field, and pressure at . Click on the individual images to see an animation from to

Click on the images to see an
animation
The files implementing this
example are included in the current CentPack
distribution, CP-1.0. Read here how to run and compile this example.
|
